| MOQ: | 1 |
| 価格: | to be quoted |
| 標準パッケージ: | 合板ボックス |
| 配達期間: | 40営業日 |
| 支払方法: | T/T |
| 供給能力: | 月に10ユニット |

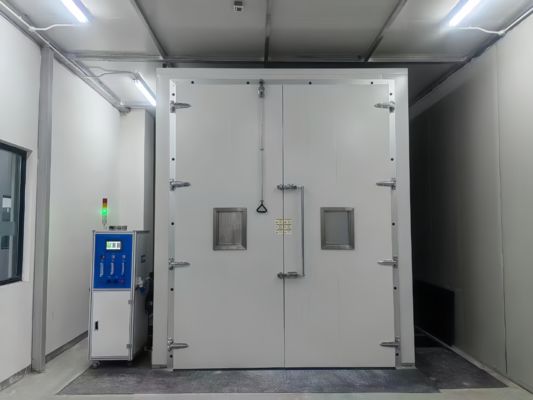

Dust Test chamber is applicable to all kinds of auto parts for dust proof testing. The test unit can be used for lights, instruments, electrical dust covers, steering systems, door locks, etc., and for testing product sealing.
| Parameter | Value |
|---|---|
| Internal dimension | W2500 × D3000 × H3200 mm |
| Dimension | W3000mm × D3300mm × H3400mm |
| Metal mesh diameter | 50μm |
| Air velocity | No more than 2m/s |
| The Talcum powder amount | 2kg/m³ |
| Flow meter A | 60~600ml/min |
| Flow meter B | 0.60~6l/min |
| Internal material | SUS304 corrosion resistant plate |
| External material | Cold plate rust proof and plastic spraying treatment |
| Door | Tempered glass door |
| Vacuum pump | 0 ~ -50Kpa |
| Temperature control | RT~60℃ |
| Sample weight | ≤100KG |
| Timing range | 0s～999h99m99s |
| Load cycle control | 0s～999h99m99s |
| Working noise | ≤60dB @ 1 meter away from machine |
| Dustproof plug base, supply | For AC 220V 20A power, the constant control timer to control power on or power off |
| Maximum sample weight | 5 tons |
| Power | AC380V 50/60Hz 6KW |
