| MOQ: | 1 |
| 価格: | To be quoted |
| 標準パッケージ: | 安全カートンパックまたは合板ボックス |
| 配達期間: | 7営業日 |
| 支払方法: | T/T |
| 供給能力: | 1ヶ月あたりの100 PC |
The temperature measurement corner conforms to the standard requirement of IEC60335-1, IEC62369-1, IEC60601-1. It is designed and manufactured to provide the required environment for the temperature rising test of all kinds of electrical, electrical products. It can be customized according to the different testing samples.

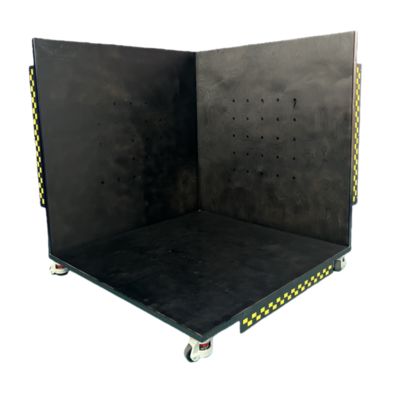

The Black Test Corner for temperature measurement is conformed by a trihedral one of black painting plywood, with a matrix of holes each 100 mm that allow to adapt thermocouples of measurement easily, specially designed for such case.
The dimensions of the device are: base 1000mm x 1000mm and with a height of 1000mm, mounted on a structure with wheels, to allow his movement.
Thermocouples of measurement is of curved type K, mounted on a ceramic case and in its end of measurement they have a copper disc of Ø15 mm and 1 mm of thickness. They consist of a compensated cable of variable length (according to the necessity) with a compensated connector male, mini type to accede directly to the measuring instrument.
The Black Test Corner can be applied to the temperature test of all kinds of electronic products supply, in conformity with the standards requirement of the environmental conditions.
| Type | Descriptions details |
|---|---|
| Dimension | 600×600×600mm | 800×800×1000mm | 1000×1000×1000mm |
| Thermocouple | φ<0.3mm Import: K type |
| Thermocouple disposal | Disposal in a line bank (select and fit out thermocouple plug and socket) |
| Test temperature sheet copper | Diameter15mm, thickness1mm sheet brass |
| Test temperature point | 20point, 32point, 75point(other) |
| Test temperature point disposal | 100mm x 100mm |
| Glued board | Thickness about 20mm, Berlin black in face, Stick the gray sheet glued board in rear |
| Active part | Install 4 pieces active wheels |
| Provide | Personalized Service |
|
|
