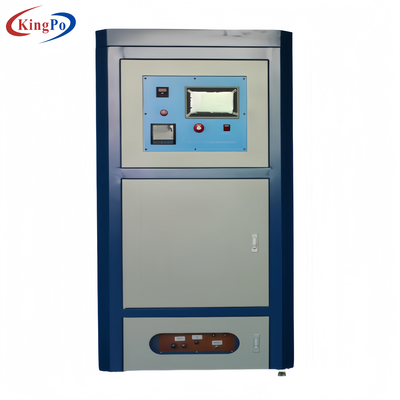

KP-GT1802 Lamp Load Cabinet 3-Station 250V IEC 60669-1 Test

MOQ:	1
価格:	To be quoted
標準パッケージ:	安全カートンパックまたは合板ボックス
支払方法:	T/T

製品の説明

起源の場所

ブランド名

KingPo

モデル番号

KP-GT1802

ドキュメント

IEC 60669-1：2007”家庭および同様の固定電気設備のスイッチ - パート1：一般的な要件」条項19.3

ハイライト:

3-station lamp load cabinet

IEC 60669-1 test equipment

250V electrical safety tester

製品の説明

KP-GT1802 Self Ballasted Lamp Load Cabinet for Load Switching Capacity Test

Product Information

Sample and restrictions: Switches for controlling self-ballasted lamps.

Test Purpose

Used to test the load switching capacity of switches for controlling self-ballasted lamps.

Test Principle

Switches used to control self-ballasted lamps should withstand the electrical and thermal stresses that occur when controlling LED circuits without excessive damage or other harmful effects. The purpose is to assess:

Presence of continuous arc flash in the switch
Contact welding
Long-term contact closure or disconnection
Excessive wear and other harmful consequences

Equipment Structure and Characteristics

The load cabinet adopts an integral steel structure frame and Toyota white sealing plate. At the top of the front is the operation control panel containing:

Control power switches
Product test voltage and power display instruments
Alarms and touch screens
Resistor and capacitor load combinations
AC contactors and relays

There are terminals under the cabinet, which are connected to the products in the testing machine through wires to output current and provide load during the testing process.

Key Features

Preset with standard load conditions before leaving the factory

Easy and intuitive operation with digital display of input voltage and output power

3 test stations for simultaneous testing of 3 switches

Built-in 90-degree closing plate for convenient waveform measurement

Equipped with voltage regulator for 250V~ testing without external equipment

Equipment dimensions:

Approximately 780*900*1800 (mm) W*D*H

Equipment weight:

200kg

Technical Parameters

Test station	3 stations, independent output
Electrical control method	Touch screen + button control, instrument display
Digital voltage value	Range 0-300V, accuracy 0.5
Digital power value	Range 0-9KW, accuracy 0.5
Output voltage	0-280V adjustable, ensure the test voltage is 250V
Preset switch rated voltage	Each channel is 250V, with four optional rated currents: 10A, 13A, 16A, and 20A
Measurement function	Each set of equipment includes a closing control device for measurement verification
Protection function	With long-off/long-on function, preset protection time from 1 to 99 seconds

Reference Images

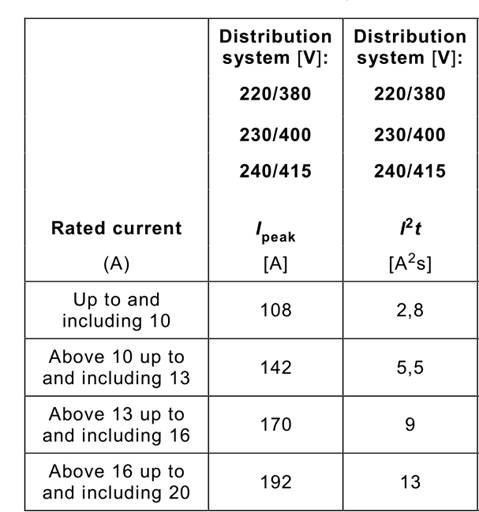

KP-GT1802 Switching current peak and I²t value relationship table
